Second Generation Dry Claw Vacuum Pumps
DZS A, DZS VSD+ A, DSZ V and DZS VSD+
The new era of innovation - these pumps are built to deliver higher performance, energy-efficiency and operational ease.
DZS 065-300A Series – The next stage of dry claw vacuum pumps
Atlas Copco’s second-generation DZS A series Dry Vacuum Pumps are the new standard of vacuum efficiency. Taking a step further from the previous generation, this updated series provide superior vacuum performance with high pumping speeds and deep ultimate vacuum levels. The DZS A series dry mono claw vacuum pumps are easy to maintain with a separate and isolated pumping element allowing quick access to the pumping chamber. This ensures ease of service and on-site maintenance, helping you meet your operational goals with no lag in efficiency.
You can also choose from our new range of pressure variants - DZS 065-300AP series are reliable pressure variant blowers that deliver low pressure air. They are especially suited for processes such as pneumatic conveying.

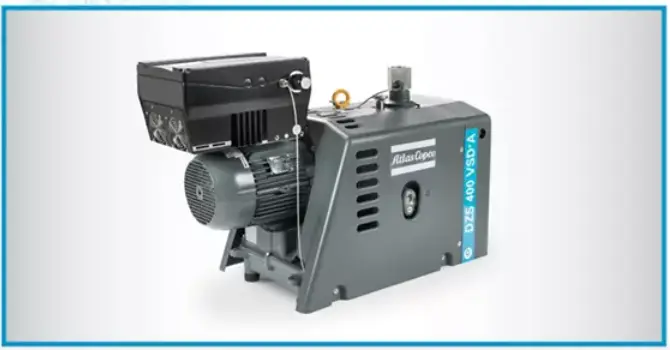

DZS 100-400 VSD+A Series – The efficient energy-saving variants
As part of our continuous efforts to upgrade our product capabilities and focus on energy-conscious efficiency, the DZS VSD+ A series dry vacuum pumps come with several enhancements. From the integrated VSD+ inverter drive and pressure setpoint control that allows high productivity to new clever modular design that allows flexibility and ease of maintenance, the series is all for big power and big energy savings.
Through the Variable Speed Drive (VSD+), it adapts to the changing demand in production and subsequently reduces energy consumption. In terms of design and structure, they are compact, rugged and robust with a small footprint.
Other benefits include the Smart Kit that prevents overheating and the remote connectivity for easier control and smart monitoring capabilities. You can access your pump performance and health on your smartphone with its Bluetooth connection.
DZS 500-1000 V and DZS 600-1200 VSD+
The DZS 500-1000 V series of dry claw vacuum pumps are contactless vacuum pumps with modular construction consisting of compartments. Made for low maintenance and continuous duty operations, the special PEEKCOAT coating make this pump suitable for harsh applications with high water vapor loads.
The DZS 600-1200 VSD+ series are single stage, oil-free, air-cooled and with the VSD+ inverter drive technology built-in. The pump can run at ultimate vacuum level continuously without overheating. Durable and dependable, they also deliver on performance for years to come. It definitely the Dry Vacuum Pump of choice for rough vacuum applications.
Our DZS dry claw series are ideal for several applications:
•Plastic extrusion
•Pneumatic conveying
•Food applications
•Central vacuum systems
•Vacuum sewage
•Pick and place
•Printing
•Paper converting
•CNC routing/clamping
•Tobacco
Control at your fingertips – The Atlas Copco VSD+ App
The Atlas Copco VSD+ app is a unique application for iOS and Android devices. It lets you control and monitor a vacuum pump with your smartphone. The VSD+ app allows for ease of commission for your DZS VSD+ A series vacuum pump by providing 3 parameters - target pressure, start/stop delay and stop level.
All you have to do is start your pump, connect the VSD+ app via Bluetooth, enter the desired parameters and you are all set to run your pump remotely with ease.
Enhanced performance
Higher pumping speeds and increased productivity meet demanding production requirements.
Inlet non return valve
Isolates pump from process when the pump is switched off preventing any damage caused by backflow.
Lower noise levels
Redesigned silencer significantly reduces noise levels while maintaining vacuum performance.
Remote connectivity
Enjoy easy accessibility to your pumps control systems and updates on your smartphone for better monitoring.
Smart kit
Prevents the pump from overheating when at ultimate vacuum providing better efficiency and suction flow (in VSD+ and multi-claw only).
Wide range of variants
The DZS A series Dry Vacuum Pumps come in fixed speed IE4 motor, bare shaft, pressure and oxygen variants.
Technical product specifications
DZS 065-300A, DZS 100-400 VSD+A
|
Unit |
DZS 065A |
DZS 150A |
DSZ 300A |
DZS 100 VSD+A |
DSZ 200 VSD+A | DSZ 400 VSD+A | ||
|
Performance |
Peak pumping speed (50Hz) |
m3h-1 / cfm |
65 / 38 |
150 / 88 |
300 / 176 |
105 / 62 |
189 / 111 |
398 / 234 |
|
Peak pumping speed (60Hz) |
m3h-1 / cfm |
78 / 47 |
180 / 104 |
360 / 208 |
||||
|
Ultimate vacuum continuous |
mbar / torr |
50 / 37.5 |
50 / 37.5 |
140 / 105 |
50 / 37.5 |
50 / 37.5 |
140 / 105 |
|
|
Nominal motor power |
@ 50Hz |
kW / hp |
1.8 / 2.0 |
3.7 / 5.0 |
6.2 / 8.3 |
3kW / 5hp |
5.5kW / 7hp |
11kW / 15hp |
|
@ 60Hz |
kW / hp |
2.2 / 3.0 |
3.7 / 5.0 |
7.5 / 10.0 |
||||
|
@ RPM |
50Hz / 60Hz |
3000 / 3600 |
3000 / 3600 |
3000 / 3600 |
4500 |
3900 |
4200 |
|
|
Vacuum connections |
Inlet/ Outlet connection* |
G 1 1/4" |
G 1 1/4" or NPT-G 1 1/4" or NPT |
G 2 - G 1 1/4" or NPT |
G 1 1/4" or NPT-G 1 1/4"" or NPT |
G 1 1/4" or NPT-G 1 1/4" or NPT |
G 2" or NPT-G 1 1/4" or NPT |
|
|
Dimensions |
W x H x L (50Hz) |
mm |
401 x 475 x 879 |
401 x 475 x 897 |
501 x 567 x 1036 |
401 x 565 x 900 |
401 x 619 x 932 |
501 x 764 x 1087 |
|
W x H x L (60Hz) |
mm |
|||||||
|
Operating data |
Voltage available |
V |
200 / 230 / 380 460 / 575 |
200 / 230 / 380 460 / 575 |
200 / 230 / 380 460 / 575 |
380 / 460 |
380 / 460 |
380 / 460 |
|
Noise (50Hz / 60Hz) |
dB(A) |
72 / 75 |
72 / 75 |
72 / 75 |
72 / 76 |
72 / 76 |
72 / 76 |
|
|
Operating temperature |
°C / °F |
0 to 40 / 32 to 104 |
0 to 40 / 32 to 104 |
0 to 40 / 32 to 104 |
0 to 40 / 32 to 104 |
0 to 40 / 32 to 104 |
0 to 40 / 32 to 104 |
|
|
Oil capacity (Gear box) |
l / gal |
0.7 / 0.185 |
0.7 / 0.185 |
1.5 / 0.30 |
0.7 / 0.185 |
0.7 / 0.185 |
1.5 / 0.30 |
|
|
*60Hz and VSD+ A models come with NPT adapters |
|
|
|
|||||
DZS 065-300AP
|
Unit |
DZS 065AP |
DZS 150AP | DZS 300AP | ||
|
Performance |
Max. displacement (50HZ) |
m3h-1 / cfm |
65 / 39 |
150 / 88 |
238 / 140 |
|
Max. displacement (60HZ) |
m3h-1 / cfm |
78 / 46 |
180 / 106 |
280 / 165 |
|
|
Max. outlet pressure |
bar(g) |
1.8 |
2.3 |
2.3 |
|
|
Nominal motor power |
@ 50Hz |
kW / hp |
3.7 / 5.0 |
11 / 14.75 |
19 / 25.5 |
|
@ 60Hz |
kW / hp |
3.7 / 5.0 |
15 / 20.11 |
22 / 29.5 |
|
|
@ RPM |
50Hz / 60Hz |
3000 / 3600 |
3000 / 3600 |
3000 / 3600 |
|
|
Vacuum connections |
Inlet- outlet connection |
G 1 1/4” or NPT - G 1 1/4” or NPT |
G 1 1/4” or NPT - G 1 1/4” or NPT |
G 2 - G 1 1/4” or NPT |
|
|
Dimensions |
W x H x L (50 Hz) |
mm |
401 x 672 x 988 |
401 x 672 x 1089 |
501 x 784 x 1310 |
|
W x H x L (60 Hz) |
mm |
||||
|
Operating data |
Voltage available |
V |
200 / 230 / 380 / 460 / 575 |
200 / 230 / 380 / 460 / 575 |
200 / 230 / 380 / 460 / 575 |
|
Operating temperature |
°C / °F |
0 to 40 / 32 to 104 |
0 to 40 / 32 to 104 |
0 to 40 / 32 to 104 |
|
|
Oil capacity (Gear box) |
l / gal |
0.7 / 0.185 |
0.7 / 0.185 |
1.5 / 0.30 |
|
DZS 500-1000 V, DZS 600-1200 VSD+
|
Unit |
DZS 500 V |
DZS 1000 V |
DZS 600 VSD+ | DZS 1200 VSD+ | ||
|
Performance |
Peak pumping speed (50Hz) |
m3h-1 / cfm |
500 / 294 |
950 / 558 |
600 / 353 |
1140 / 670 |
|
Peak pumping speed (60Hz) |
m3h-1 / cfm |
600 / 353 |
1140 / 670 |
|||
|
Ultimate vacuum continuous |
mbar / torr |
200 / 150 |
||||
|
Nominal motor power |
@ 50Hz |
kW / hp |
9.2 / 12.3 |
18.5 / 25 |
11 / 14.7 |
22 / 30 |
|
@ 60Hz |
kW / hp |
11 / 14.7 |
22 / 30 |
|||
|
@ RPM |
50Hz / 60Hz |
2850 / 3450 |
3450 |
|||
|
Vacuum connections |
Inlet/ Outlet connection |
**BSP(G)3"/2.5" |
DN100 PN6 /DN100 PN10 |
**BSP(G)3"/2.5" |
DN100 PN6 /DN100 PN10 |
|
|
Dimensions |
W x H x L (50Hz) |
mm |
586 x 845 x 1252 |
680 x 1240 x 1468 |
586 x 969 x 1362 |
680 x 1284 x 1460 |
|
W x H x L (60Hz) |
mm |
586 x 845 x 1310 |
680 x 1274 x 1434 |
|||
|
Operating data |
Voltage available |
V |
400V 50Hz / 380V 60Hz / 460V 60Hz |
380V / 460V |
||
|
Noise (50Hz / 60Hz) |
dB(A) |
76 / 78 |
82 / 85 |
up to 78 |
up to 85 |
|
|
Operating temperature |
°C / °F |
5~40 / 41~104 |
||||
|
Oil capacity (Gear box) |
l / gal |
1.5 / 0.4 |
2.8 / 0.7 |
1.5 / 0.4 |
2.8 / 0.7 |
|
